Wagenborg Foxdrill team contributes to innovative geothermal project

In Graben-Neudorf, Germany, near Karlsruhe, Deutsche ErdWärme is busy with the realization of its first geothermal project. Two wells will be drilled to a depth of around 3 700 metres to extract thermal water that will be used to generate electricity and heat for around 10 000 households.

Innovative first

The project in the Upper Rhine region is a first using the latest drilling and extraction techniques. The Wagenborg Foxdrill team was involved in several phases of this special project.

Protecting groundwater

Wagenborg Foxdrill's conductor specialists were involved early on in this innovative geothermal project by both the project's main contractors, Huisman Geo and Ed. Züblin AG. One of the challenges for the team was to create two safe boreholes, each 36 metres deep in the upper earth layer. This was to shield the groundwater from the drilling activities.

Conductor piling solution

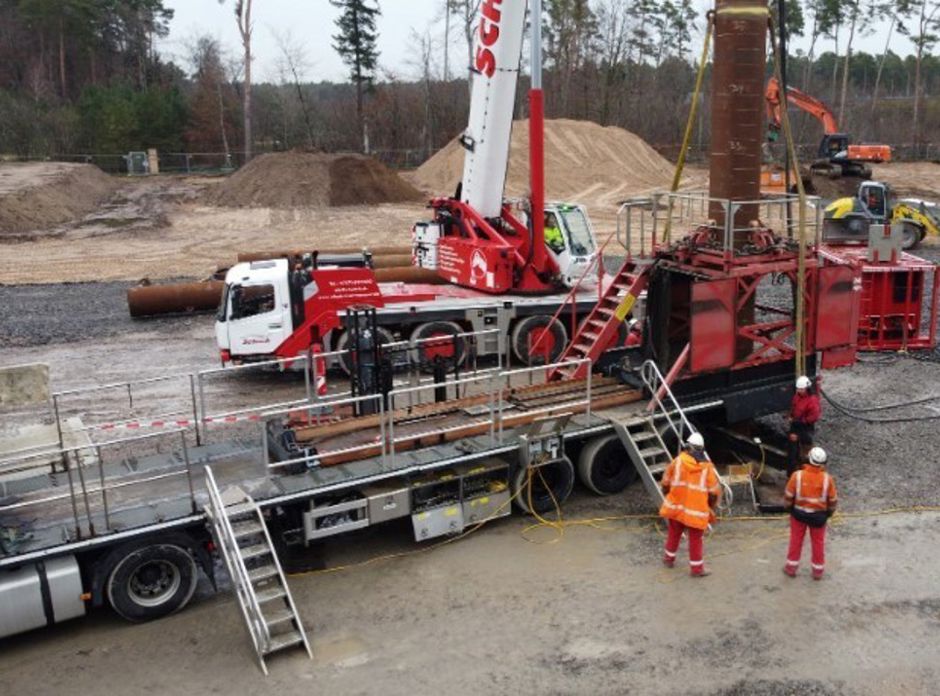

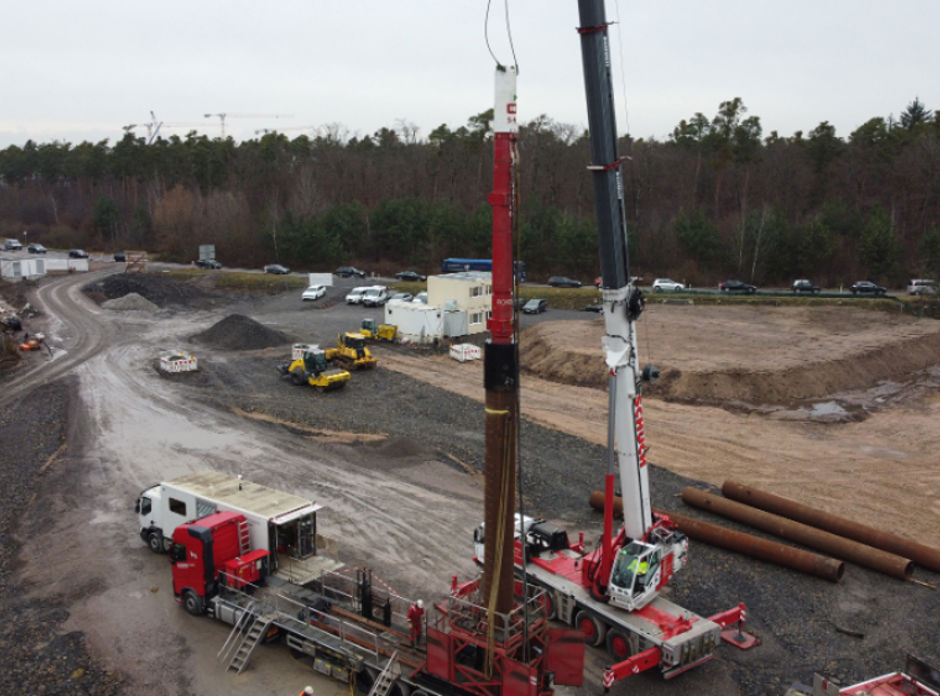

A conductor piling solution proved to be the safest, cleanest and most efficient solution.  The Wagenborg Foxdrill team provided the complete scope for the conductor installation, including:

  • Engineering and preparation
  • Delivery of the 36'' conductors
  • Deployment of hydrohammer type S-90
  • Deployment of Foxdrill installation frame

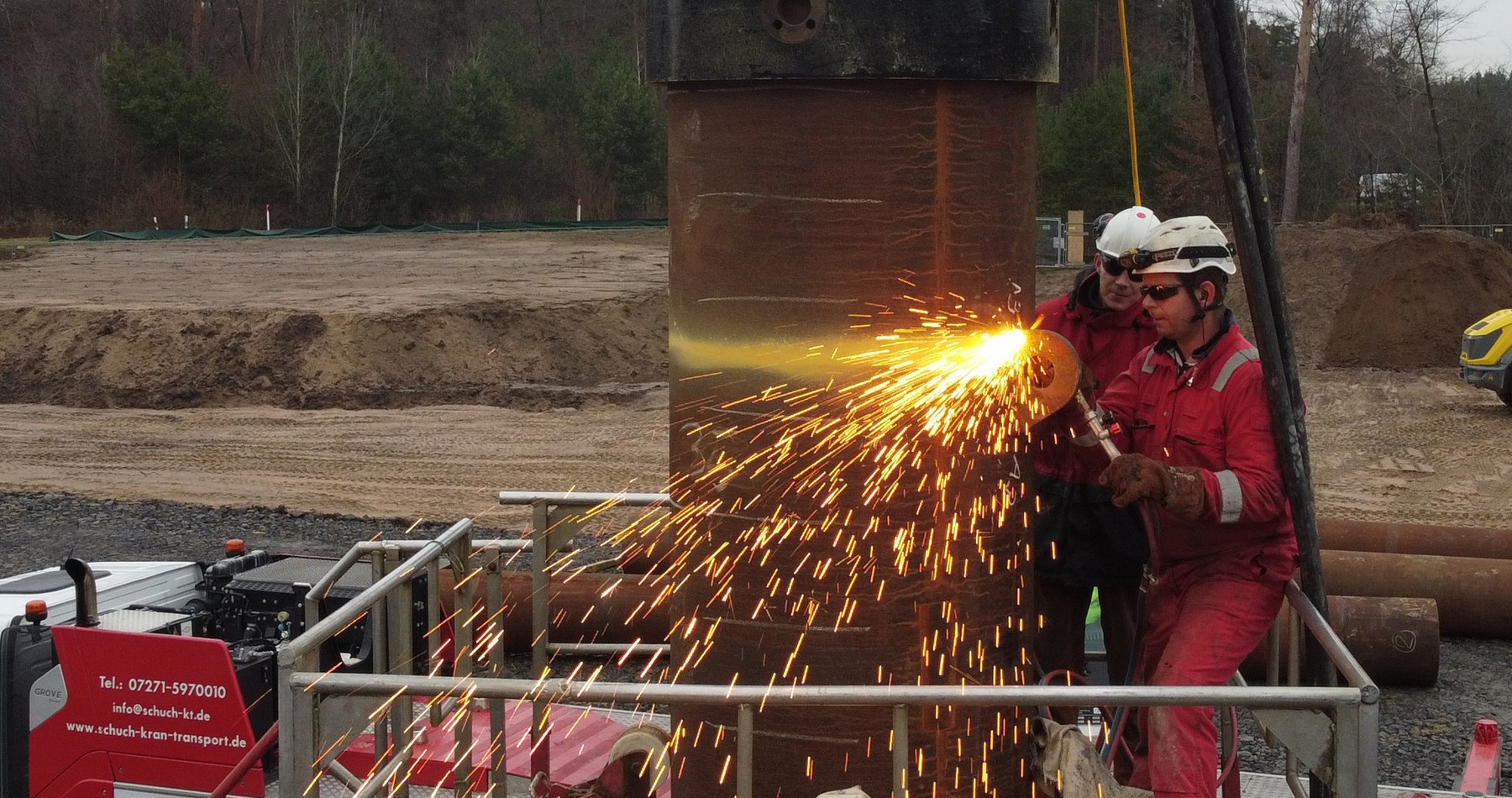

  • Installation of the two conductors

Watch the project movies here!

On a roll

Thanks to excellent preparation and cooperation with the client, the Wagenborg Foxdrill conductor team was able to carry out the conductor installation successfully.

“The conductor installation of these big was executed in a very well prepared, safe and well executed manner – in time and budget. We are looking forward to more jobs with Foxdrill for other upcoming conductor jobs.”

Dr. Sebastian Homuth, Well Operation Manager, Deutsche Erdwärme

Rig Acceptance

In the meanwhile, preparations on the actual drilling operations had already started. For this purpose, the plan was to mobilize a Huisman LOC 400 drilling rig from the Czech Republic to the project site in Graben-Neudorf.



But before this drilling rig could be brought in and deployed, a thorough inspection had to be executed. For this inspection scope, Wagenborg Foxdrill's rig inspection and acceptance team was consulted.

Rig acceptance - technical

Wagenborg Foxdrill's rig inspection and acceptance specialists are multi-skilled: they are experts in mechanical, hydraulic, electrical, QHSE and compliance fields. First of all, the team examined the operational capacity and safety of the drilling rig for the intended drilling operation in Graben-Neudorf, as this rig had not been used for such geothermal drilling before.

Rig acceptance - compliance

Now it was a matter of getting the compliance and certification of the rig in order, so the rig would meet the legal requirements for the relevant drilling operations in Germany. At this point, the two Wagenborg Foxdrill surveyors proved to be of great value to the client too, with the result that the drilling rig could be transported to Germany on schedule and with the correct documents.

“We were in close communication and cooperation during the whole rig survey processes and have experienced a very professional and comprehensive service of high quality which was also delivered in the desired time and cost window.”

Dr. Sebastian Homuth, Well Operation Manager, Deutsche Erdwärme

First time right!

First time right - that is Wagenborg Foxdrill's motto and also on the project in Graben-Neudorf, the Foxdrill team made a difference.

Deutsche ErdWärme

Deutsche ErdWärme is the largest private developer and operator of geothermal energy systems in Germany. Deutsche ErdWärme specializes in deep geothermal energy and realizes geothermal plants according to the latest technology in this field.



The objective is to generate renewable electricity and heat from geothermal energy at several locations in the Oberrhein region (between Heidelberg and Freiburg) by 2025, thus realizing local energy and heat transition. The geothermal project in Graben-Neudorf is the most advanced project.
